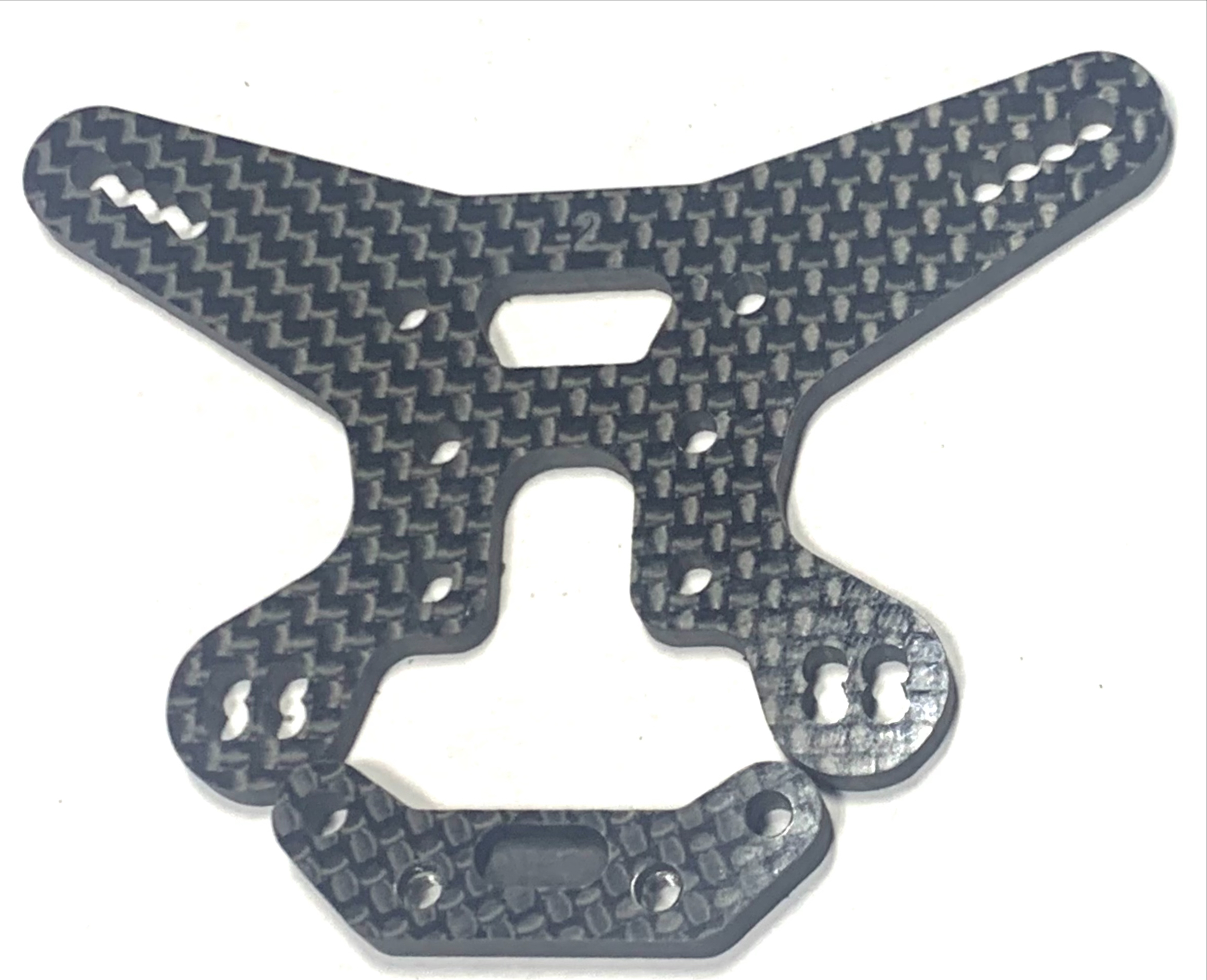

Factory Foote B7 -2mm Rear Tower with Camber Link

Factory Foote B7 -2 Rear Tower With Camber Link Mount. This tower incorporates the camber link mount. The carbon replacement for factory ball stud mount, has m3 threaded inserts to accepts D block screws. The spacer replaces factory ball stud mount. Tower is 2mm shorter than factory tower, and retains the use of tower guard. -2 has been milled into tower for identification.

Buggies with carpet tires, usually need up-travel limiting. A 2mm shorter tower adds droop, and takes away up-travel. Take 2mm out of shock stroke, or go to 2mm shorter shock end.

This tower moves the camber link forward, more parallel with the dog bone. This should take some bind out of the link.

Note: Please don’t us Loctite on threaded inserts.
